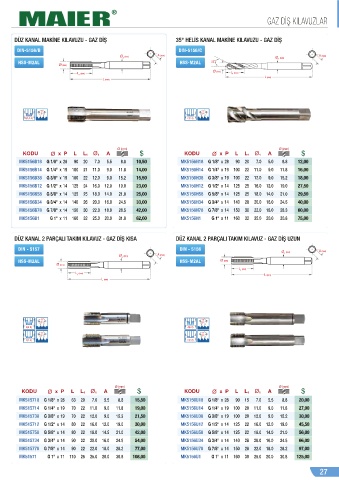

*$= 'ĚŃ .,/$98=/$5
'= .$1$/ 0$.ð1( .,/$98=8 *$= 'ðě r +(/ð6 .$1$/ 0$.ð1( .,/$98=8 *$= 'ðě
DIN-5156/B DIN-5156/C
Ø 1 (mm) A (mm) Ø 1 (mm) A (mm)
HSS-M2AL HSS-M2AL 35 °
Ø (mm)
Ø (mm)
L 1 (mm) L 1 (mm)
L (mm)
L (mm)
55 ° 55 °
P P
B(3,5-5) C(2-3)
Ø (mm) Ø (mm)
KODU Ø x P L L 1 Ø 1 A KODU Ø x P L L 1 Ø 1 A
MK5156B18 G 1/8" x 28 28 90 20 7.0 5.5 8.8 10,50 MK5156H18 G 1/8" x 28 28 90 20 7.0 5.0 8.8 12,00
MK5156B14 G 1/4" x 19 100 21 11.0 9.0 11.8 14,00 MK5156H14 G 1/4" x 19 100 22 11.0 9.0 11.8 16,00
MK5156B38 G 3/8" x 19 19 100 22 12.0 9.0 15.2 15,50 MK5156H38 G 3/8" x 19 19 100 22 12.0 9.0 15.2 18,00
MK5156B12 G 1/2" x 14 125 24 16.0 12.0 19.0 23,00 MK5156H12 G 1/2" x 14 125 25 16.0 12.0 19.0 27,50
MK5156B58 G 5/8" x 14 14 125 25 18.0 14.0 21.0 25,00 MK5156H58 G 5/8" x 14 14 125 25 18.0 14.0 21.0 29,50
MK5156B34 G 3/4" x 14 140 26 20.0 16.0 24.5 33,00 MK5156H34 G 3/4" x 14 140 28 20.0 16.0 24.5 40,00
MK5156B78 G 7/8" x 14 14 150 30 22.0 18.0 28.5 42,00 MK5156H78 G 7/8" x 14 14 150 30 22.0 18.0 28.3 60,00
MK5156B1 G 1" x 11 160 32 25.0 20.0 31.0 62,00 MK5156H1 G 1" x 11 160 32 25.0 20.0 30.8 75,00
'= .$1$/ 3$5$/, 7$.,0 .,/$98= *$= 'ðě .,6$ '= .$1$/ 3$5$/, 7$.,0 .,/$98= *$= 'ðě 8=81
DIN - 5157 DIN - 5156
Ø 1 (mm) A (mm)
Ø (mm) A (mm)
1
HSS-M2AL HSS-M2AL Ø (mm)
Ø (mm)
L 1 (mm)
L (mm) L (mm)
1
L (mm)
55 ° 55 °
P P
A(6-8) A(6-8)
55 ° 55 °
P P
C(2-3) C(2-3)
Ø (mm) Ø (mm)
KODU Ø x P L L 1 Ø 1 A KODU Ø x P L L 1 Ø 1 A
MK515718 G 1/8" x 28 28 63 20 7.0 5.5 8.8 15,50 MK5156U18 G 1/8" x 28 28 90 15 7.0 5.5 8.8 20,00
MK515714 G 1/4" x 19 70 22 11.0 9.0 11.8 19,00 MK5156U14 G 1/4" x 19 100 20 11.0 9.0 11.8 27,00
MK515738 G 3/8" x 19 19 70 22 12.0 9.0 15.2 21,50 MK5156U38 G 3/8" x 19 19 100 20 12.0 9.0 15.2 30,00
MK515712 G 1/2" x 14 80 22 16.0 12.0 19.0 30,00 MK5156U12 G 1/2" x 14 125 22 16.0 12.0 19.0 45,50
MK515758 G 5/8" x 14 14 80 22 18.0 14.5 21.0 42,00 MK5156U58 G 5/8" x 14 14 125 22 18.0 14.0 21.0 56,00
MK515734 G 3/4" x 14 90 22 20.0 16.0 24.5 54,00 MK5156U34 G 3/4" x 14 140 28 20.0 16.0 24.5 66,00
MK515778 G 7/8" x 14 14 90 22 22.0 18.0 28.2 77,00 MK5156U78 G 7/8" x 14 14 150 28 22.0 18.0 28.2 97,00
MK51571 G 1" x 11 110 25 25.0 20.0 30.8 108,00 MK5156U1 G 1" x 11 160 30 25.0 20.0 30.8 125,00
27
