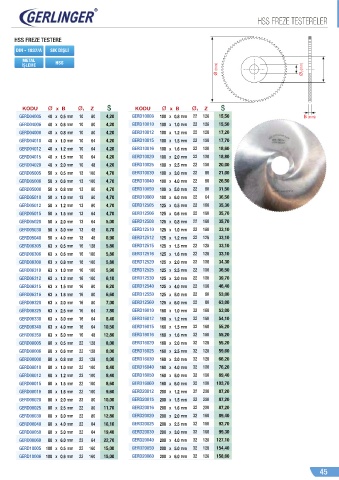

+66 )5(=( 7(67(5(/(5

+66 )5(=( 7(67(5(
DIN - 1837/A 6,. 'Š§/Š

METAL HSS
Ø (mm) Ø 1 (mm)
Š§/(0(

KODU Ø x B Ø 1 Z KODU Ø xB Ø 1 Z
*(5' 40 x 0.5 mm 10 80 4,20 *(5' 100 x 0.8 mm 22 128 15,50 B (mm)
*(5' 40 x 0.6 mm 10 80 4,20 *(5' 100 x 1.0 mm 22 128 15,50
*(5' 40 x 0.8 mm 10 80 4,20 *(5' 100 x 1.2 mm 22 128 17,20
*(5' 40 x 1.0 mm 10 64 4,20 *(5' 100 x 1.5 mm 22 100 17,70
*(5' 40 x 1.2 mm 10 64 4,20 *(5' 100 x 1.6 mm 22 100 18,60
*(5' 40 x 1.5 mm 10 64 4,20 *(5' 100 x 2.0 mm 22 100 18,80
*(5' 40 x 2.0 mm 10 48 4,20 *(5' 100 x 2.5 mm 22 100 20,00
*(5' 50 x 0.5 mm 13 100 4,70 *(5' 100 x 3.0 mm 22 80 21,00
*(5' 50 x 0.6 mm 13 100 4,70 *(5' 100 x 4.0 mm 22 80 26,50
*(5' 50 x 0.8 mm 13 80 4,70 *(5' 100 x 5.0 mm 22 80 31,50
*(5' 50 x 1.0 mm 13 80 4,70 *(5' 100 x 6.0 mm 22 64 36,50
*(5' 50 x 1.2 mm 13 80 4,70 *(5' 125 x 0.5 mm 22 160 35,30
*(5' 50 x 1.5 mm 13 64 4,70 *(5' 125 x 0.6 mm 22 160 35,70
*(5' 50 x 2.0 mm 13 64 5,00 *(5' 125 x 0.8 mm 22 160 35,70
*(5' 50 x 3.0 mm 13 48 6,70 *(5' 125 x 1.0 mm 22 160 33,10
*(5' 50 x 4.0 mm 13 48 6,90 *(5' 125 x 1.2 mm 22 128 33,10
*(5' 63 x 0.5 mm 16 128 5,80 *(5' 125 x 1.5 mm 22 128 33,10
*(5' 63 x 0.6 mm 16 100 5,80 *(5' 125 x 1.6 mm 22 128 33,10
*(5' 63 x 0.8 mm 16 100 5,80 *(5' 125 x 2.0 mm 22 100 34,30
*(5' 63 x 1.0 mm 16 100 5,90 *(5' 125 x 2.5 mm 22 100 36,50
*(5' 63 x 1.2 mm 16 100 6,10 *(5' 125 x 3.0 mm 22 100 39,70
*(5' 63 x 1.5 mm 16 80 6,20 *(5' 125 x 4.0 mm 22 100 46,40
*(5' 63 x 1.6 mm 16 80 6,60 *(5' 125 x 5.0 mm 22 80 53,00
*(5' 63 x 2.0 mm 16 80 7,00 *(5' 125 x 6.0 mm 22 80 63,00
*(5' 63 x 2.5 mm 16 64 7,80 *(5' 160 x 1.0 mm 32 160 53,00
*(5' 63 x 3.0 mm 16 64 8,40 *(5' 160 x 1.2 mm 32 160 54,10
*(5' 63 x 4.0 mm 16 64 10,50 *(5' 160 x 1.5 mm 32 160 55,20
*(5' 63 x 5.0 mm 16 48 12,80 *(5' 160 x 1.6 mm 32 160 55,20
*(5' 80 x 0.5 mm 22 128 8,00 *(5' 160 x 2.0 mm 32 128 55,20
*(5' 80 x 0.6 mm 22 128 8,00 *(5' 160 x 2.5 mm 32 128 59,60
*(5' 80 x 0.8 mm 22 128 8,00 *(5' 160 x 3.0 mm 32 128 66,20
*(5' 80 x 1.0 mm 22 100 8,40 *(5' 160 x 4.0 mm 32 100 76,20
*(5' 80 x 1.2 mm 22 100 8,40 *(5' 160 x 5.0 mm 32 100 89,40
*(5' 80 x 1.5 mm 22 100 8,60 *(5' 160 x 6.0 mm 32 100 103,70
*(5' 80 x 1.6 mm 22 100 9,60 *(5' 200 x 1.2 mm 32 200 87,20
*(5' 80 x 2.0 mm 22 80 10,00 *(5' 200 x 1.5 mm 32 200 87,20
*(5' 80 x 2.5 mm 22 80 11,70 *(5' 200 x 1.6 mm 32 200 87,20
*(5' 80 x 3.0 mm 22 80 12,80 *(5' 200 x 2.0 mm 32 160 89,40
*(5' 80 x 4.0 mm 22 64 16,10 *(5' 200 x 2.5 mm 32 160 92,70
*(5' 80 x 5.0 mm 22 64 19,40 *(5' 200 x 3.0 mm 32 160 99,30
*(5' 80 x 6.0 mm 22 64 22,70 *(5' 200 x 4.0 mm 32 128 127,10
*(5' 100 x 0.5 mm 22 160 15,00 *(5' 200 x 5.0 mm 32 128 154,40
*(5' 100 x 0.6 mm 22 160 15,00 *(5' 200 x 6.0 mm 32 128 158,60
