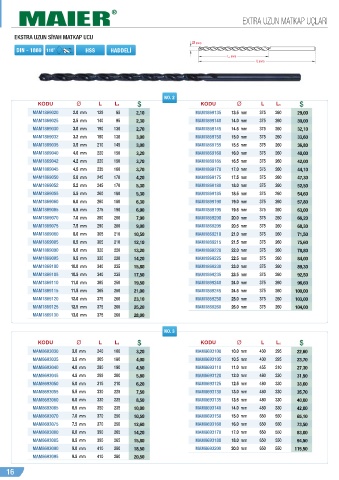

EXTRA U UN MATKAP UÇLARI

EKSTRA UZUN SİYAH MATKAP UCU
Ø (mm)
DIN - 1869 118° HSS A E İ
L 1 (mm)
L (mm)

NO. 2
KODU Ø L L 1 KODU Ø L L 1
MAM1869020 2.0 mm 125 85 2,10 MAM1869135 13.5 mm 375 260 29,00
MAM1869025 2.5 mm 140 95 2,30 MAM1869140 14.0 mm 375 260 30,00
MAM1869030 3.0 mm 190 130 2,70 MAM1869145 14.5 mm 375 260 32,10
MAM1869032 3.2 mm 190 130 3,00 MAM1869150 15.0 mm 375 260 33,60
MAM1869035 3.5 mm 210 145 3,00 MAM1869155 15.5 mm 375 260 36,80
MAM1869040 4.0 mm 220 150 3,20 MAM1869160 16.0 mm 375 260 40,00
MAM1869042 4.2 mm 220 150 3,70 MAM1869165 16.5 mm 375 260 42,00
MAM1869045 4.5 mm 235 160 3,70 MAM1869170 17.0 mm 375 260 44,10
MAM1869050 5.0 mm 245 170 4,20 MAM1869175 17.5 mm 375 260 47,30
MAM1869052 5.2 mm 245 170 5,30 MAM1869180 18.0 mm 375 260 52,50
MAM1869055 5.5 mm 260 180 5,30 MAM1869185 18.5 mm 375 260 54,60
MAM1869060 6.0 mm 260 180 6,30 MAM1869190 19.0 mm 375 260 57,80
MAM1869065 6.5 mm 275 190 6,90 MAM1869195 19.5 mm 375 260 63,00
MAM1869070 7.0 mm 290 200 7,90 MAM1869200 20.0 mm 375 260 66,20
MAM1869075 7.5 mm 290 200 9,00 MAM1869205 20.5 mm 375 260 68,30
MAM1869080 8.0 mm 305 210 10,50 MAM1869210 21.0 mm 375 260 71,50
MAM1869085 8.5 mm 305 210 12,10 MAM1869215 21.5 mm 375 260 75,60
MAM1869090 9.0 mm 320 220 13,20 MAM1869220 22.0 mm 375 260 78,80
MAM1869095 9.5 mm 320 220 14,20 MAM1869225 22.5 mm 375 260 84,00
MAM1869100 10.0 mm 340 235 15,80 MAM1869230 23.0 mm 375 260 89,30
MAM1869105 10.5 mm 340 235 17,50 MAM1869235 23.5 mm 375 260 92,50
MAM1869110 11.0 mm 365 250 19,50 MAM1869240 24.0 mm 375 260 96,60
MAM1869115 11.5 mm 365 250 21,00 MAM1869245 24.5 mm 375 260 100,00
MAM1869120 12.0 mm 375 260 23,10 MAM1869250 25.0 mm 375 260 103,00
MAM1869125 12.5 mm 375 260 25,20 MAM1869260 26.0 mm 375 260 104,00
MAM1869130 13.0 mm 375 260 28,00

NO. 3
KODU Ø L L 1 KODU Ø L L 1
MAM8693030 3.0 mm 240 160 3,20 MAM8693100 10.0 mm 430 295 22,60
MAM8693035 3.5 mm 265 180 4,00 MAM8693105 10.5 mm 430 295 23,70
MAM8693040 4.0 mm 280 190 4,50 MAM8693110 11.0 mm 455 310 27,30
MAM8693045 4.5 mm 295 200 5,80 MAM8693120 12.0 mm 480 330 31,50
MAM8693050 5.0 mm 315 210 6,20 MAM8693125 12.5 mm 480 330 33,60
MAM8693055 5.5 mm 330 225 7,50 MAM8693130 13.0 mm 480 330 35,70
MAM8693060 6.0 mm 330 225 8,50 MAM8693135 13.5 mm 480 330 40,00
MAM8693065 6.5 mm 350 235 10,00 MAM8693140 14.0 mm 480 330 42,00
MAM8693070 7.0 mm 370 250 10,50 MAM8693150 15.0 mm 650 550 65,10
MAM8693075 7.5 mm 370 250 12,60 MAM8693160 16.0 mm 650 550 73,50
MAM8693080 8.0 mm 390 265 14,20 MAM8693170 17.0 mm 650 550 83,00
MAM8693085 8.5 mm 390 265 15,80 MAM8693180 18.0 mm 650 550 94,50
MAM8693090 9.0 mm 410 280 18,50 MAM8693200 20.0 mm 650 550 115,50
MAM8693095 9.5 mm 410 280 20,50
