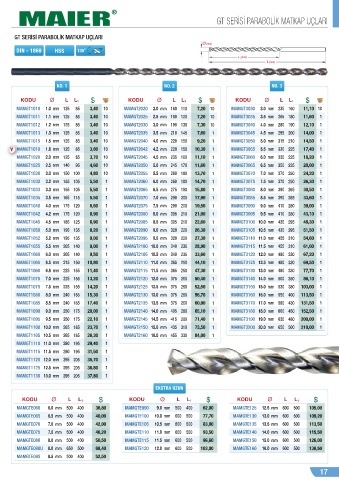

T SERİSİ PARABOLİK MATKAP UÇLARI

GT SERİSİ PARABOLİK MATKAP UÇLARI
Ø (mm)
DIN - 1869 HSS 135°
L 1 (mm)
L (mm)

NO. 1 NO. 2 NO. 3

KODU Ø L L 1 PA K E T KODU Ø L L 1 PA K E T KODU Ø L L 1 PA K E T
MAMGT1010 1.0 mm 125 85 3,40 10 MAMGT2020 2.0 mm 160 110 7,20 10 MAMGT3030 3.0 mm 235 160 11,10 10
MAMGT1011 1.1 mm 125 85 3,40 10 MAMGT2025 2.5 mm 180 120 7,20 10 MAMGT3035 3.5 mm 265 180 11,60 1
MAMGT1012 1.2 mm 125 85 3,40 10 MAMGT2030 3.0 mm 190 130 7,30 10 MAMGT3040 4.0 mm 280 190 12,10 1
MAMGT1013 1.3 mm 125 85 3,40 10 MAMGT2035 3.5 mm 210 145 7,60 1 MAMGT3045 4.5 mm 295 200 14,00 1
MAMGT1015
MAMGT1015 1.5 mm 125 85 3,40 10 MAMGT2040 4.0 mm 220 150 9,20 1 MAMGT3050 5.0 mm 315 210 14,50 1
MAMGT1018
MAMGT1018 1.8 mm 125 85 3,60 10 MAMGT2042 4.2 mm 220 150 10,30 1 MAMGT3055 5.5 mm 330 225 17,40 1
MAMGT1020
MAMGT1020 2.0 mm 125 85 3,70 10 MAMGT2045 4.5 mm 235 160 11,10 1 MAMGT3060 6.0 mm 330 225 18,20 1
MAMGT1025 2.5 mm 140 95 4,60 10 MAMGT2050 5.0 mm 245 170 11,60 1 MAMGT3065 6.5 mm 350 235 20,00 1
MAMGT1030 3.0 mm 150 100 4,80 10 MAMGT2055 5.5 mm 260 180 13,70 1 MAMGT3070 7.0 mm 370 250 24,20 1
MAMGT1032 3.2 mm 155 105 5,50 1 MAMGT2060 6.0 mm 260 180 14,70 1 MAMGT3075 7.5 mm 370 250 26,30 1
MAMGT1033 3.3 mm 155 105 5,50 1 MAMGT2065 6.5 mm 275 190 15,80 1 MAMGT3080 8.0 mm 390 265 30,50 1
MAMGT1035 3.5 mm 165 115 5,50 1 MAMGT2070 7.0 mm 290 200 17,90 1 MAMGT3085 8.5 mm 390 265 33,60 1
MAMGT1040 4.0 mm 175 120 6,60 1 MAMGT2075 7.5 mm 290 200 19,50 1 MAMGT3090 9.0 mm 410 280 39,00 1
MAMGT1042 4.2 mm 175 120 6,90 1 MAMGT2080 8.0 mm 305 210 21,00 1 MAMGT3095 9.5 mm 410 280 43,10 1
MAMGT1045 4.5 mm 185 125 6,90 1 MAMGT2085 8.5 mm 305 210 22,60 1 MAMGT3100 10.0 mm 430 295 48,30 1
MAMGT1050 5.0 mm 195 135 8,20 1 MAMGT2090 9.0 mm 320 220 26,30 1 MAMGT3105 10.5 mm 430 295 51,50 1
MAMGT1052 5.2 mm 195 135 9,00 1 MAMGT2095 9.5 mm 320 220 27,30 1 MAMGT3110 11.0 mm 455 310 54,60 1
MAMGT1055 5.5 mm 205 140 9,00 1 MAMGT2100 10.0 mm 340 235 28,90 1 MAMGT3115 11.5 mm 455 310 61,00 1
MAMGT1060 6.0 mm 205 140 9,50 1 MAMGT2105 10.5 mm 340 235 33,60 1 MAMGT3120 12.0 mm 480 330 67,20 1
MAMGT1065 6.5 mm 215 150 10,80 1 MAMGT2110 11.0 mm 365 250 44,10 1 MAMGT3125 12.5 mm 480 330 69,50 1
MAMGT1068 6.8 mm 225 155 11,40 1 MAMGT2115 11.5 mm 365 250 47,30 1 MAMGT3130 13.0 mm 480 330 77,70 1
MAMGT1070 7.0 mm 225 155 13,20 1 MAMGT2120 12.0 mm 375 260 50,40 1 MAMGT3140 14.0 mm 500 350 86,10 1
MAMGT1075 7.5 mm 225 155 14,20 1 MAMGT2125 12.5 mm 375 260 52,50 1 MAMGT3150 15.0 mm 530 380 103,00 1
MAMGT1080 8.0 mm 240 165 15,30 1 MAMGT2130 13.0 mm 375 260 56,70 1 MAMGT3160 16.0 mm 550 400 113,50 1
MAMGT1085 8.5 mm 240 165 17,40 1 MAMGT2135 13.5 mm 375 260 60,90 1 MAMGT3170 17.0 mm 580 430 131,50 1
MAMGT1090 9.0 mm 250 175 20,00 1 MAMGT2140 14.0 mm 405 280 65,10 1 MAMGT3180 18.0 mm 600 450 152,50 1
MAMGT1095 9.5 mm 250 175 22,10 1 MAMGT2145 14.5 mm 415 290 71,40 1 MAMGT3190 19.0 mm 630 480 200,00 1
MAMGT1100 10.0 mm 265 185 23,70 1 MAMGT2150 15.0 mm 435 310 73,50 1 MAMGT3200 20.0 mm 650 500 210,00 1
MAMGT1105 10.5 mm 265 185 26,30 1 MAMGT2160 16.0 mm 455 330 84,00 1
MAMGT1110 11.0 mm 280 195 29,40 1
MAMGT1115 11.5 mm 280 195 31,50 1
MAMGT1120 12.0 mm 295 205 35,70 1
MAMGT1125 12.5 mm 295 205 36,80 1
MAMGT1130 13.0 mm 295 205 37,80 1
E ST A U UN

KODU Ø L L 1 KODU Ø L L 1 KODU Ø L L 1
MAMGTE060 6.0 mm 500 400 36,80 MAMGTE090 9.0 mm 500 400 62,00 MAMGTE125 12.5 mm 600 500 105,00
MAMGTE065 6.5 mm 500 400 40,00 MAMGTE100 10.0 mm 600 500 77,70 MAMGTE130 13.0 mm 600 500 109,20
MAMGTE070 7.0 mm 500 400 42,00 MAMGTE105 10.5 mm 600 500 83,00 MAMGTE135 13.5 mm 600 500 113,50
MAMGTE075 7.5 mm 500 400 46,20 MAMGTE110 11.0 mm 600 500 93,50 MAMGTE140 14.0 mm 600 500 115,50
MAMGTE080 8.0 mm 500 400 50,50 MAMGTE115 11.5 mm 600 500 96,60 MAMGTE150 15.0 mm 600 500 126,00
MAMGTE080U 8.0 mm 650 500 68,40 MAMGTE120 12.0 mm 600 500 103,00 MAMGTE160 16.0 mm 600 500 136,50
MAMGTE085 8.5 mm 500 400 52,50

17
