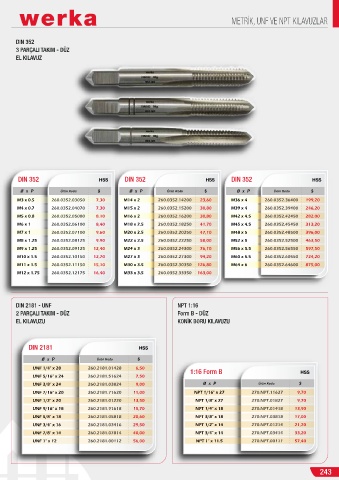

METRİK, UNF VE NPT KILAVUZLAR

DIN 352
3 PARÇALI TAKIM - DÜZ
EL KILAVUZ

DIN 352 HSS DIN 352 HSS DIN 352 HSS

Ø x P Ürün Kodu $ Ø x P Ürün Kodu $ Ø x P Ürün Kodu $
M3 x 0.5 260.0352.03050 7,30 M14 x 2 260.0352.14200 23,60 M36 x 4 260.0352.36400 199,20
M4 x 0.7 260.0352.04070 7,30 M15 x 2 260.0352.15200 30,80 M39 x 4 260.0352.39400 246,20
M5 x 0.8 260.0352.05080 8,10 M16 x 2 260.0352.16200 30,80 M42 x 4.5 260.0352.42450 282,00
M6 x 1 260.0352.06100 8,40 M18 x 2.5 260.0352.18250 41,70 M45 x 4.5 260.0352.45450 313,20
M7 x 1 260.0352.07100 9,60 M20 x 2.5 260.0352.20250 47,10 M48 x 5 260.0352.48500 396,00
M8 x 1.25 260.0352.08125 9,90 M22 x 2.5 260.0352.22250 58,00 M52 x 5 260.0352.52500 463,50
M9 x 1.25 260.0352.09125 12,40 M24 x 3 260.0352.24300 76,10 M56 x 5.5 260.0352.56550 597,50
M10 x 1.5 260.0352.10150 12,70 M27 x 3 260.0352.27300 94,20 M60 x 5.5 260.0352.60550 724,20
M11 x 1.5 260.0352.11150 15,10 M30 x 3.5 260.0352.30350 126,80 M64 x 6 260.0352.64600 875,00
M12 x 1.75 260.0352.12175 16,40 M33 x 3.5 260.0352.33350 163,00

DIN 2181 - UNF NPT 1:16
2 PARÇALI TAKIM - DÜZ Form B - DÜZ
EL KILAVUZU KONİK BORU KILAVUZU

DIN 2181 HSS

Ø x P Ürün Kodu $
UNF 1/4" x 28 260.2181.01428 6,50 1:16 Form B HSS
UNF 5/16" x 24 260.2181.51624 7,50
UNF 3/8" x 24 260.2181.03824 9,00 Ø x P Ürün Kodu $
UNF 7/16" x 20 260.2181.71620 11,00 NPT 1/16" x 27 270.NPT.11627 9,70
UNF 1/2" x 20 260.2181.01220 13,50 NPT 1/8" x 27 270.NPT.01827 9,70
UNF 9/16" x 18 260.2181.91618 15,70 NPT 1/4" x 18 270.NPT.01418 13,90
UNF 5/8" x 18 260.2181.05818 20,60 NPT 3/8" x 18 270.NPT.03818 17,00
UNF 3/4" x 16 260.2181.03416 29,50 NPT 1/2" x 14 270.NPT.01214 21,20
UNF 7/8" x 14 260.2181.07814 40,00 NPT 3/4" x 14 270.NPT.03414 33,20
UNF 1" x 12 260.2181.00112 56,00 NPT 1" x 11.5 270.NPT.00111 57,40
