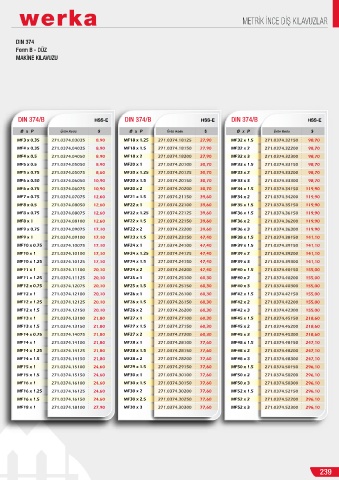

P. 237
METRİK İNCE DİŞ KILAVUZLAR
DIN 374
Form B - DÜZ
MAKİNE KILAVUZU
DIN 374/B HSS-E DIN 374/B HSS-E DIN 374/B HSS-E
Ø x P Ürün Kodu $ Ø x P Ürün Kodu $ Ø x P Ürün Kodu $
MF3 x 0.35 271.0374.03035 8,90 MF18 x 1.25 271.0374.18125 27,90 MF32 x 1.5 271.0374.32150 98,70
MF4 x 0.35 271.0374.04035 8,90 MF18 x 1.5 271.0374.18150 27,90 MF32 x 2 271.0374.32200 98,70
MF4 x 0.5 271.0374.04050 8,90 MF18 x 2 271.0374.18200 27,90 MF32 x 3 271.0374.32300 98,70
MF5 x 0.5 271.0374.05050 8,90 MF20 x 1 271.0374.20100 30,70 MF33 x 1.5 271.0374.33150 98,70
MF5 x 0.75 271.0374.05075 8,60 MF20 x 1.25 271.0374.20125 30,70 MF33 x 2 271.0374.33200 98,70
MF6 x 0.50 271.0374.06050 10,90 MF20 x 1.5 271.0374.20150 30,70 MF33 x 3 271.0374.33300 98,70
MF6 x 0.75 271.0374.06075 10,90 MF20 x 2 271.0374.20200 30,70 MF34 x 1.5 271.0374.34150 119,90
MF7 x 0.75 271.0374.07075 12,60 MF21 x 1.5 271.0374.21150 39,60 MF34 x 2 271.0374.34200 119,90
MF8 x 0.5 271.0374.08050 12,60 MF22 x 1 271.0374.22100 39,60 MF35 x 1.5 271.0374.35150 119,90
MF8 x 0.75 271.0374.08075 12,60 MF22 x 1.25 271.0374.22125 39,60 MF36 x 1.5 271.0374.36150 119,90
MF8 x 1 271.0374.08100 12,60 MF22 x 1.5 271.0374.22150 39,60 MF36 x 2 271.0374.36200 119,90
MF9 x 0.75 271.0374.09075 17,10 MF22 x 2 271.0374.22200 39,60 MF36 x 3 271.0374.36300 119,90
MF9 x 1 271.0374.09100 17,10 MF23 x 1.5 271.0374.23150 47,40 MF38 x 1.5 271.0374.38150 141,10
MF10 x 0.75 271.0374.10075 17,10 MF24 x 1 271.0374.24100 47,40 MF39 x 1.5 271.0374.39150 141,10
MF10 x 1 271.0374.10100 17,10 MF24 x 1.25 271.0374.24125 47,40 MF39 x 2 271.0374.39200 141,10
MF10 x 1.25 271.0374.10125 17,10 MF24 x 1.5 271.0374.24150 47,40 MF39 x 3 271.0374.39300 141,10
MF11 x 1 271.0374.11100 20,10 MF24 x 2 271.0374.24200 47,40 MF40 x 1.5 271.0374.40150 155,00
MF11 x 1.25 271.0374.11125 20,10 MF25 x 1 271.0374.25100 60,30 MF40 x 2 271.0374.40200 155,00
MF12 x 0.75 271.0374.12075 20,10 MF25 x 1.5 271.0374.25150 60,30 MF40 x 3 271.0374.40300 155,00
MF12 x 1 271.0374.12100 20,10 MF26 x 1 271.0374.26100 60,30 MF42 x 1.5 271.0374.42150 155,00
MF12 x 1.25 271.0374.12125 20,10 MF26 x 1.5 271.0374.26150 60,30 MF42 x 2 271.0374.42200 155,00
MF12 x 1.5 271.0374.12150 20,10 MF26 x 2 271.0374.26200 60,30 MF42 x 3 271.0374.42300 155,00
MF13 x 1 271.0374.13100 21,80 MF27 x 1 271.0374.27100 60,30 MF45 x 1.5 271.0374.45150 218,60
MF13 x 1.5 271.0374.13150 21,80 MF27 x 1.5 271.0374.27150 60,30 MF45 x 2 271.0374.45200 218,60
MF14 x 0.75 271.0374.14075 21,80 MF27 x 2 271.0374.27200 60,30 MF45 x 3 271.0374.45300 218,60
MF14 x 1 271.0374.14100 21,80 MF28 x 1 271.0374.28100 77,60 MF48 x 1.5 271.0374.48150 247,10
MF14 x 1.25 271.0374.14125 21,80 MF28 x 1.5 271.0374.28150 77,60 MF48 x 2 271.0374.48200 247,10
MF14 x 1.5 271.0374.14150 21,80 MF28 x 2 271.0374.28200 77,60 MF48 x 3 271.0374.48300 247,10
MF15 x 1 271.0374.15100 24,60 MF29 x 1.5 271.0374.29150 77,60 MF50 x 1.5 271.0374.50150 296,10
MF15 x 1.5 271.0374.15150 24,60 MF30 x 1 271.0374.30100 77,60 MF50 x 2 271.0374.50200 296,10
MF16 x 1 271.0374.16100 24,60 MF30 x 1.5 271.0374.30150 77,60 MF50 x 3 271.0374.50300 296,10
MF16 x 1.25 271.0374.16125 24,60 MF30 x 2 271.0374.30200 77,60 MF52 x 1.5 271.0374.52150 296,10
MF16 x 1.5 271.0374.16150 24,60 MF30 x 2.5 271.0374.30250 77,60 MF52 x 2 271.0374.52200 296,10
MF18 x 1 271.0374.18100 27,90 MF30 x 3 271.0374.30300 77,60 MF52 x 3 271.0374.52300 296,10
