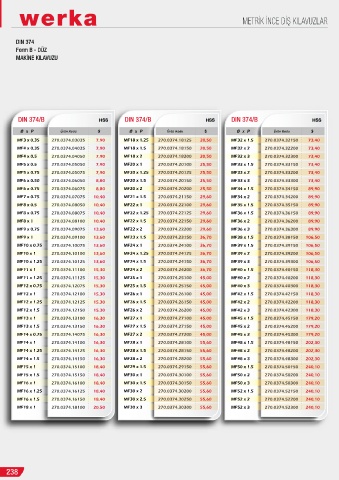

P. 236
METRİK İNCE DİŞ KILAVUZLAR
DIN 374
Form B - DÜZ
MAKİNE KILAVUZU
DIN 374/B HSS DIN 374/B HSS DIN 374/B HSS
Ø x P Ürün Kodu $ Ø x P Ürün Kodu $ Ø x P Ürün Kodu $
MF3 x 0.35 270.0374.03035 7,90 MF18 x 1.25 270.0374.18125 20,50 MF32 x 1.5 270.0374.32150 73,40
MF4 x 0.35 270.0374.04035 7,90 MF18 x 1.5 270.0374.18150 20,50 MF32 x 2 270.0374.32200 73,40
MF4 x 0.5 270.0374.04050 7,90 MF18 x 2 270.0374.18200 20,50 MF32 x 3 270.0374.32300 73,40
MF5 x 0.5 270.0374.05050 7,90 MF20 x 1 270.0374.20100 25,50 MF33 x 1.5 270.0374.33150 73,40
MF5 x 0.75 270.0374.05075 7,90 MF20 x 1.25 270.0374.20125 25,50 MF33 x 2 270.0374.33200 73,40
MF6 x 0.50 270.0374.06050 8,80 MF20 x 1.5 270.0374.20150 25,50 MF33 x 3 270.0374.33300 73,40
MF6 x 0.75 270.0374.06075 8,80 MF20 x 2 270.0374.20200 25,50 MF34 x 1.5 270.0374.34150 89,90
MF7 x 0.75 270.0374.07075 10,40 MF21 x 1.5 270.0374.21150 29,60 MF34 x 2 270.0374.34200 89,90
MF8 x 0.5 270.0374.08050 10,40 MF22 x 1 270.0374.22100 29,60 MF35 x 1.5 270.0374.35150 89,90
MF8 x 0.75 270.0374.08075 10,40 MF22 x 1.25 270.0374.22125 29,60 MF36 x 1.5 270.0374.36150 89,90
MF8 x 1 270.0374.08100 10,40 MF22 x 1.5 270.0374.22150 29,60 MF36 x 2 270.0374.36200 89,90
MF9 x 0.75 270.0374.09075 13,60 MF22 x 2 270.0374.22200 29,60 MF36 x 3 270.0374.36300 89,90
MF9 x 1 270.0374.09100 13,60 MF23 x 1.5 270.0374.23150 36,70 MF38 x 1.5 270.0374.38150 106,50
MF10 x 0.75 270.0374.10075 13,60 MF24 x 1 270.0374.24100 36,70 MF39 x 1.5 270.0374.39150 106,50
MF10 x 1 270.0374.10100 13,60 MF24 x 1.25 270.0374.24125 36,70 MF39 x 2 270.0374.39200 106,50
MF10 x 1.25 270.0374.10125 13,60 MF24 x 1.5 270.0374.24150 36,70 MF39 x 3 270.0374.39300 106,50
MF11 x 1 270.0374.11100 15,30 MF24 x 2 270.0374.24200 36,70 MF40 x 1.5 270.0374.40150 118,30
MF11 x 1.25 270.0374.11125 15,30 MF25 x 1 270.0374.25100 45,00 MF40 x 2 270.0374.40200 118,30
MF12 x 0.75 270.0374.12075 15,30 MF25 x 1.5 270.0374.25150 45,00 MF40 x 3 270.0374.40300 118,30
MF12 x 1 270.0374.12100 15,30 MF26 x 1 270.0374.26100 45,00 MF42 x 1.5 270.0374.42150 118,30
MF12 x 1.25 270.0374.12125 15,30 MF26 x 1.5 270.0374.26150 45,00 MF42 x 2 270.0374.42200 118,30
MF12 x 1.5 270.0374.12150 15,30 MF26 x 2 270.0374.26200 45,00 MF42 x 3 270.0374.42300 118,30
MF13 x 1 270.0374.13100 16,30 MF27 x 1 270.0374.27100 45,00 MF45 x 1.5 270.0374.45150 179,20
MF13 x 1.5 270.0374.13150 16,30 MF27 x 1.5 270.0374.27150 45,00 MF45 x 2 270.0374.45200 179,20
MF14 x 0.75 270.0374.14075 16,30 MF27 x 2 270.0374.27200 45,00 MF45 x 3 270.0374.45300 179,20
MF14 x 1 270.0374.14100 16,30 MF28 x 1 270.0374.28100 55,60 MF48 x 1.5 270.0374.48150 202,30
MF14 x 1.25 270.0374.14125 16,30 MF28 x 1.5 270.0374.28150 55,60 MF48 x 2 270.0374.48200 202,30
MF14 x 1.5 270.0374.14150 16,30 MF28 x 2 270.0374.28200 55,60 MF48 x 3 270.0374.48300 202,30
MF15 x 1 270.0374.15100 18,40 MF29 x 1.5 270.0374.29150 55,60 MF50 x 1.5 270.0374.50150 240,10
MF15 x 1.5 270.0374.15150 18,40 MF30 x 1 270.0374.30100 55,60 MF50 x 2 270.0374.50200 240,10
MF16 x 1 270.0374.16100 18,40 MF30 x 1.5 270.0374.30150 55,60 MF50 x 3 270.0374.50300 240,10
MF16 x 1.25 270.0374.16125 18,40 MF30 x 2 270.0374.30200 55,60 MF52 x 1.5 270.0374.52150 240,10
MF16 x 1.5 270.0374.16150 18,40 MF30 x 2.5 270.0374.30250 55,60 MF52 x 2 270.0374.52200 240,10
MF18 x 1 270.0374.18100 20,50 MF30 x 3 270.0374.30300 55,60 MF52 x 3 270.0374.52300 240,10
238
